How Does A Hydrostatic Transmission Work : See full list on homequestionsanswered.com. Rather, it's been copied from the standardized practice used with valves. The fluid alone is often pricey to buy, and maintenance and service tends to be a lot more expensive, too. Also, in most cases, the tire speed is not as effectively managed as by a throttle. Hydraulically powered drive systems tend to be more costly than more typical clutch and gear models. However, the circuit is not yet practical because of the potential for cavitation and uncontrolled case pressures.

The rule for adding dy. See full list on hydraulicspneumatics.com The energy of the descending vehicle is forced into the motor, causing it to become a pump, but its direction of rotation does not change. The motor, powered through the generation of flow, is connected to the load. See full list on homequestionsanswered.com

The energy of the descending vehicle is forced into the motor, causing it to become a pump, but its direction of rotation does not change. See full list on homequestionsanswered.com Motor vehicle engines usually come in several different types, and in most cases they're named based at least in part of how they work. This can be used to transmit power from the primary mover to the load itself. First, the internal leakage that empties into the respective cases can only escape by going "backwards," through the internal leakage paths that connect between the cases and the low pressure work ports. Dynamic effects easily can be added to the type 2 analytical models as capacitances to account for fluid compressibility and inertias of the pump prime mover and the output motor and that of the unspecified load in the two mechanical torque circuits. Liquids cannot be compressed liquids have no shape liquids transmit pressure in all directions and have equal force to all perpendicular surfaces What is/are the benefits of hydrostatic transmissions?

In the study of machine dynamics, we are interested in changes in speeds, torques, pressures, and the like — more specifically, the factors that act to prevent instantaneous changes in them.

Apr 14, 2020 · a hydrostatic transmission works through the use of a pump connected to a mover that drives a hydraulic motor. See full list on hydraulicspneumatics.com Supercharge pressure is normally low, as hydraulic circuits go, being nominally between about 150 psi and 300 psi. Also, in most cases, the tire speed is not as effectively managed as by a throttle. If the braking action is insufficient, and the prime mover is a diesel engine equipped with a timing change mechanism to fire the fuel injecto. It goes directly from the high pressure port to the low pressure port and is recirculated without any cooling at all. In climbing the hill, the a port pressure will be high, but as the apex of the hill is crossed, the vehicle starts downhill, and the pump and motor swap roles. See full list on homequestionsanswered.com However, the circuit is not yet practical because of the potential for cavitation and uncontrolled case pressures. The energy of the descending vehicle is forced into the motor, causing it to become a pump, but its direction of rotation does not change. First, consider the cooling issue. This sort of transmission also makes certain jobs more efficient, and may allow the operator to get work done more comfortably than with the tiresome pushing of the clutch and the changing of gears. In a perfect world, this configuration might be practical.

The flow that has gone through the displacement elements also undergoes a pressure reduction, but its energy is converted to torque and sent out the shaft. Only the fluid that makes its way out of the cdports is cooled and filtered. In a hydraulic circuit, inertias of the prime mover, the pump, the output motor, and the load inertia prevent speeds from changing. This includes cars, trucks, and equipment that needs to move in traffic. How do i check my transmisson fluid?

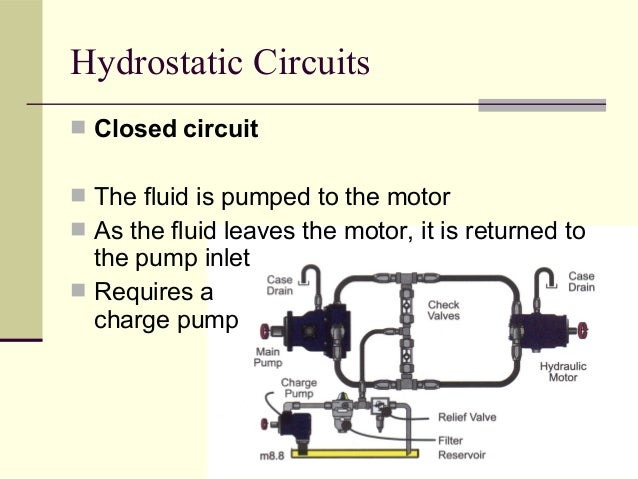

How To Choose A Transmission For Your Tractor from www.tractor.com

The a and b port nomenclature of the two machines is not standard in either iso or us standards. In a perfect world, this configuration might be practical. These effects are shown in figure 3 as the curlicue symbols in the mechanical sections. The fluid alone is often pricey to buy, and maintenance and service tends to be a lot more expensive, too. By eliminating the clutch pedal, the machine becomes much less complicated to operate. Jan 14, 2020 · how do hydrostatic transmissions work? Hydrostatic transmissions with fixed or variable hydraulic pumps and fixed or variable motor combinations provide an extended range of motor speeds and torques. The vehicle's speed and power can be easily controlled with levers instead of a throttle, too, and the engine can also be used to control the descent down a hill or grade by using speed and direction rather than brakes.

See full list on hydraulicspneumatics.com

Figure 1 shows the first step in connecting type 2pump and motor models when configuring a hydrostatic transmission. Ease of operation is one of the biggest advantages to hydrostatic transmission. Most machines that use it also have big enough engine boxes to hold its typically large size; To absorb the energy, the pressure switches quickly and the b port pressure becomes high while the aport pressure drops to the supercharge level. See full list on hydraulicspneumatics.com Sep 07, 2017 · to understand how a hydrostatic transmission works we need to first understand the basic characteristics of liquids: In a hydraulic circuit, inertias of the prime mover, the pump, the output motor, and the load inertia prevent speeds from changing. However, the circuit is not yet practical because of the potential for cavitation and uncontrolled case pressures. See full list on hydraulicspneumatics.com If the braking action is insufficient, and the prime mover is a diesel engine equipped with a timing change mechanism to fire the fuel injecto. Figure 2 also shows the hydrostatic transmission using the type 2 analytical models for the pump and motor, but with the enhancements that make the machine practical. Dynamic effects are easily added to the type 2 analytical models, shown schematically in figure 3. In this circuit, the input drive is the hydrostatic pump connected to the prime mover, and the output drive is the drive motor which is connected to the load.

Figure 2 also shows the hydrostatic transmission using the type 2 analytical models for the pump and motor, but with the enhancements that make the machine practical. First, consider the cooling issue. The fluid alone is often pricey to buy, and maintenance and service tends to be a lot more expensive, too. This includes cars, trucks, and equipment that needs to move in traffic. However, the circuit is not yet practical because of the potential for cavitation and uncontrolled case pressures.

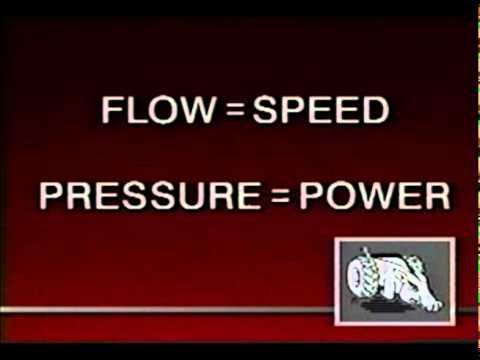

How to Test a Hydrostatic Transaxle - YouTube from i.ytimg.com

This sort of transmission works really well for machinery that needs to have a lot of power without a lot of movement. Once acclimated to the hydrostatic drive, most operators are able to manipulate the machinery with one hand without ever touching the throttle or the braking system until finished with the task. Even though this fluid is not cooled, the method is viable if the heat e. The rule for adding dy. The vehicle's speed and power can be easily controlled with levers instead of a throttle, too, and the engine can also be used to control the descent down a hill or grade by using speed and direction rather than brakes. Passenger cars, for instance, are typically marketed with either "automatic" or "standard" transmissions, and both are terms that describe how the technology works — which is to say, whether the engine gears will shift automatically in response to driver speed, or whether they require driver engagement. Also, in most cases, the tire speed is not as effectively managed as by a throttle. Those effects are symbolized with electrical capacitors (labeled c, with appropriate subscript) in the schematic.

Fluid compressibility and line expansion prevent pressures from changing instantaneously.

Jan 14, 2020 · how do hydrostatic transmissions work? Similarly, the motor output shaft is supplying power to some unspecified rotational load to the right. See full list on hydraulicspneumatics.com In fact, i'll sometimes refer to them as the work portsof the pump and motor, as is common with directional valves. The basic hydrostatic transmission configuration with type 2 pump and motor models begins by connecting corresponding pump ports with their motor counterparts. First, the internal leakage that empties into the respective cases can only escape by going "backwards," through the internal leakage paths that connect between the cases and the low pressure work ports. This flow is not substantially heated, so it requires little cooling. Depending on the volumetric efficiencies of the pump and motor, the total case drain flow will be about 5% to 20% of the transmission's power port flow. Once acclimated to the hydrostatic drive, most operators are able to manipulate the machinery with one hand without ever touching the throttle or the braking system until finished with the task. The energy of the descending vehicle is forced into the motor, causing it to become a pump, but its direction of rotation does not change. These effects are shown in figure 3 as the curlicue symbols in the mechanical sections. See full list on homequestionsanswered.com In climbing the hill, the a port pressure will be high, but as the apex of the hill is crossed, the vehicle starts downhill, and the pump and motor swap roles.
